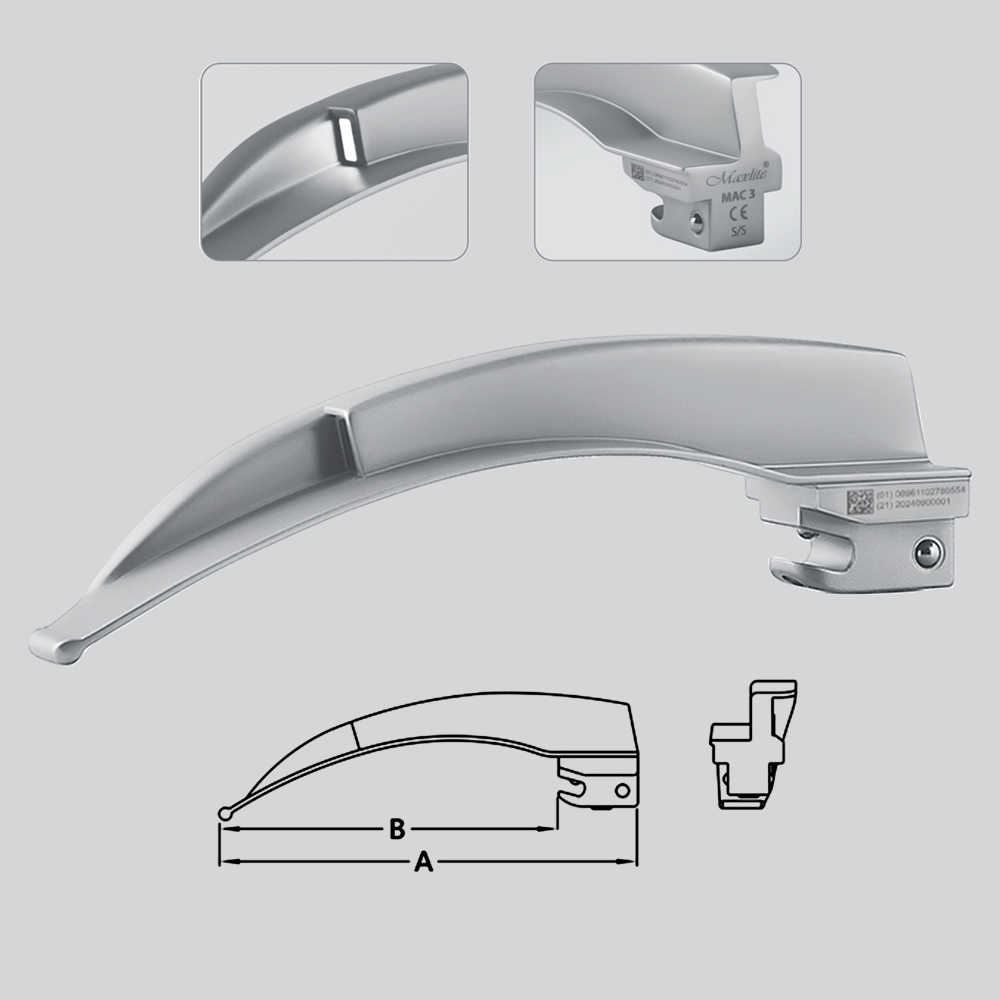

Maxlite Macintosh F.O With
Integrated Fibers
With Integrated Fibers
Built with an integrated F.O. bundle with no cavities to trap dirt or body fluids, thus allowing the blade to be easily cleaned and decontaminated. This contributes largely to the elimination of cross infection.
Specifications
- 4.5mm diameter F.O. bundle with more than 6,500 individual fiber strands.
- No Chrome plating.
- High quality fibers ensuring excellent light transmission. 8,000 lux with 2.5V Xenon lamp,14,000 lux with 3.5 V Xenon lamp, 20,000 lux with 2.5V LED lamp and 40,000 lux with 3.5V LED lamp.
- Maintenance free.
- Autoclavable up to 134°C approximately 2,000 times. No adverse affect in using ETO, Steam Autoclaving, or by soaking in Sporax or Cidex.
- Can sustain Plasma Sterilization. (STERRAD 100NX)
SETS
Macintosh Laryngoscopes Set with Integrated Fibers
810-861-01 – Maxlite Macintosh Set of 3, Consisting of Blade 1,2,3 with 2.5V Xenon Battery Handle, Medium
810-861-02 – Maxlite Macintosh Set of 3, Consisting of Blade 2,3,4 with 2.5V Xenon Battery Handle, Medium
810-861-03 – Maxlite Macintosh Set of 4, Consisting of Blade 1,2,3,4 with 2.5V Xenon Battery Handle, Medium
810-921-01 – Maxlite Macintosh Set of 3, Consisting of Blade 1,2,3 with 2.5V LED Battery Handle, Medium
810-921-02 – Maxlite Macintosh Set of 3, Consisting of Blade 2,3,4 with 2.5V LED Battery Handle, Medium
810-921-03 – Maxlite Macintosh Set of 4, Consisting of Blade 1,2,3,4 with 2.5V LED Battery Handle, Medium
810-861-11 – Maxlite Macintosh Set of 3, Consisting of Blade 1,2,3 with 3.5V Xenon Battery Handle, Medium
810-861-12 – Maxlite Macintosh Set of 3, Consisting of Blade 2,3,4 with 3.5V Xenon Battery Handle, Medium
810-861-13 – Maxlite Macintosh Set of 4, Consisting of Blade 1,2,3,4 with 3.5V Xenon Battery Handle, Medium
810-921-11 – Maxlite Macintosh Set of 3, Consisting of Blade 1,2,3 with 3.5V LED Battery Handle, Medium
810-921-12 – Maxlite Macintosh Set of 3, Consisting of Blade 2,3,4 with 3.5V LED Battery Handle, Medium
810-921-13 – Maxlite Macintosh Set of 4, Consisting of Blade 1,2,3,4 with 3.5V LED Battery Handle, Medium
Macintosh Laryngoscopes Set with Integrated Fibers
810-881-01 – Maxlite Flexitip Set of 1 Blade, Macintosh 3 with 2.5V Xenon Battery Handle, Medium
810-881-02 – Maxlite Flexitip Set of 1 Blade, Macintosh 4 with 2.5V Xenon Battery Handle, Medium
810-881-03 – Maxlite Flexitip Set of 2 Blades, Macintosh 3,4 with 2.5V Xenon Battery Handle, Medium
810-941-01 – Maxlite Flexitip Set of 1 Blade, Macintosh 3 with 2.5V LED Battery Handle, Medium
810-941-02 – Maxlite Flexitip Set of 1 Blade, Macintosh 4 with 2.5V LED Battery Handle, Medium
810-941-03 – Maxlite Flexitip Set of 2 Blades, Macintosh 3,4 with 2.5V LED Battery Handle, Medium
810-881-11 – Maxlite Flexitip Set of 1 Blade, Macintosh 3 with 3.5V Xenon Battery Handle, Medium
810-881-12 – Maxlite Flexitip Set of 1 Blade, Macintosh 4 with 3.5V Xenon Battery Handle, Medium
810-881-13 – Maxlite Flexitip Set of 2 Blades, Macintosh 3,4 with 3.5V Xenon Battery Handle, Medium
810-941-11 – Maxlite Flexitip Set of 1 Blade, Macintosh 3 with 3.5V LED Battery Handle, Medium
810-941-12 – Maxlite Flexitip Set of 1 Blade, Macintosh 4 with 3.5V LED Battery Handle, Medium
810-941-13 – Maxlite Flexitip Set of 2 Blades, Macintosh 3,4 with 3.5V LED Battery Handle, Medium
Macintosh Laryngoscopes Set with Integrated Fibers
810-851-01- Sunflex Set of 1 Blade, Macintosh Blade 3 and Battery Handle Medium
810-851-02 – Sunflex Set of 1 Blade, Macintosh Blade 4 and Battery Handle Medium
810-851-03 – Sunflex Set of 2 Blades, Macintosh Blade 3, 4 and Battery Handle Medium
