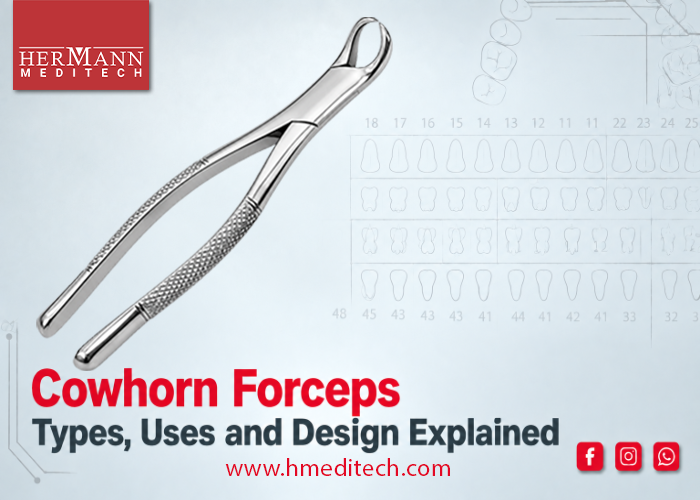

Cowhorn Forceps Types Uses Design & Complete Guide
Cowhorn Forceps: Types, Uses and Design Explained is a practical guide to one of the most distinctive dental extraction forceps used for mandibular molar extraction. Cowhorn forceps are characterized by their two long, pointed, inward-curving beaks, which are designed to engage the bifurcation between the mesial and distal roots of lower molars. Unlike conventional extraction forceps that primarily grasp the crown, cowhorn forceps can engage more deeply around the cervical and furcation area, helping the clinician apply controlled gripping and elevating forces during extraction.
The most commonly recognized cowhorn patterns are No. 23 and No. 16, both primarily associated with mandibular first and second molars. Their specialized beak geometry, strong joint and ergonomic handles make cowhorn forceps an important part of many dental extraction instrument sets.
What Are Cowhorn Forceps?
Cowhorn forceps are specialized dental extraction forceps designed mainly for extracting mandibular molars.
The name “cowhorn” comes from the appearance of their working ends. When the instrument is viewed with its jaws open, the two narrow, curved and pointed beaks resemble the horns of a cow.
Their design is particularly suited to the anatomy of lower first and second molars, which commonly have mesial and distal roots separated by a bifurcation.
The pointed beaks can be positioned toward this bifurcation from the buccal and lingual sides. As controlled pressure is applied, the beaks engage progressively around the tooth and furcation area.
What Are Cowhorn Forceps Used For?
Cowhorn forceps are primarily used for the extraction of mandibular first and second molars where the root anatomy and clinical condition allow proper engagement of the instrument.
Their main functions include:
Because their beaks are pointed rather than broad and rounded, cowhorn forceps interact with the tooth differently from conventional lower molar forceps.
Why Do Cowhorn Forceps Have Pointed Beaks?
The pointed beaks are the defining feature of cowhorn forceps.
A mandibular first or second molar normally has two principal roots:
Mesial root – positioned toward the front of the dental arch.
Distal root – positioned toward the back of the dental arch.
The area where these roots divide is known as the bifurcation or furcation.
The tips of cowhorn forceps are designed to approach this area from the buccal and lingual sides. This allows the forceps to obtain engagement closer to the root structure rather than depending entirely on gripping the external crown surface.
This design can provide useful mechanical advantage when the anatomy is appropriate.
How Do Cowhorn Forceps Work?
Cowhorn forceps combine gripping, apical engagement and controlled elevation.
The beaks are positioned on the buccal and lingual sides of the mandibular molar and directed toward the furcation.
As controlled pressure is applied to the handles, the pointed beaks advance toward the bifurcation.
This creates two important effects:
The beaks obtain a firm purchase around the cervical and furcation region of the molar.
As the beaks advance into the furcation area, their geometry can contribute to coronal movement of the tooth.
This differs from standard molar forceps, which depend more heavily on gripping the tooth and transmitting controlled luxation movements through the crown and root.
Main Types of Cowhorn Forceps
The two most widely recognized patterns are No. 23 Cowhorn Forceps and No. 16 Cowhorn Forceps.
No. 23 Cowhorn Forceps
Feature
No. 23 Cowhorn
No. 16 Cowhorn
Primary arch
Mandibular
Mandibular
Common teeth
First & second molars
First & second molars
Beak style
Pointed cowhorn
Pointed cowhorn
Furcation engagement
Yes
Yes
Left/right
Universal
Universal
Handle
Generally straight
Curved/hook-style handle
Main purpose
Lower molar extraction
Lower molar extraction
The important point is that No. 16 and No. 23 are both lower molar cowhorn patterns. The principal recognizable difference between standard versions is their handle configuration.
No. 23 Cowhorn Forceps
No. 23 Cowhorn Forceps are among the most familiar mandibular molar extraction forceps.
They feature two sharply pointed, curved beaks designed to contour toward the bifurcation between the mesial and distal roots.
Commonly used for:
No. 23 is generally considered a universal mandibular molar pattern, meaning the same instrument can be used on either the left or right side of the lower jaw.
A major identifying feature of the No. 23 pattern is its straight-handle configuration.
No. 16 Cowhorn Forceps
No. 16 Cowhorn Forceps perform a broadly similar function to No. 23.
They also have pointed beaks designed to engage the bifurcation area of mandibular first and second molars.
One commonly recognized difference is the handle design. Compared with the straight handles of the No. 23 pattern, the No. 16 pattern typically incorporates a curved or hooked handle configuration.
Commonly used for:
The choice between No. 16 and No. 23 may therefore depend partly on operator preference, access and instrument-handling technique.
Cowhorn Forceps Design Explained
Understanding the individual components helps explain why these forceps perform differently from ordinary extraction forceps.
The most distinctive component is the pair of pointed beaks.
Rather than simply surrounding the crown, the beaks are shaped to approach and engage the bifurcation of a mandibular molar.
Their pointed profile helps achieve deeper anatomical engagement when the tooth and root structure are suitable.
The working ends curve inward toward each other, creating the characteristic cowhorn appearance.
The curvature allows the beaks to approach the tooth from opposite buccal and lingual directions.
Cowhorn forceps require a strong, precisely fitted joint because significant forces may be transmitted through the instrument during extraction.
A properly manufactured joint should provide:
Poor joint alignment can affect the way the beaks contact the tooth.
The handles provide the clinician with control over the pressure transmitted to the working ends.
Good handle design should provide:
Different manufacturers may use various surface textures or handle profiles.
Unlike certain upper molar forceps that are supplied as separate right and left instruments, cowhorn forceps for mandibular molars generally have symmetrical opposing beaks.
This allows a single pattern to be used for both right and left mandibular molars.
Cowhorn Forceps vs Standard Lower Molar Forceps
Although both instruments may be used for mandibular molars, their working principles differ.
Standard lower molar forceps generally have broader beaks designed to adapt around the cervical portion of the tooth. They grip the tooth and allow controlled luxation and delivery movements.
Cowhorn forceps, in comparison, have narrow pointed beaks intended to engage toward the bifurcation.
The simplest distinction is:
Standard molar forceps = primarily grasp and luxate
Cowhorn forceps = grasp + furcation engagement + elevation
The appropriate instrument depends on tooth anatomy, crown condition, root configuration, bone condition and the clinician’s treatment plan.
When Are Cowhorn Forceps Particularly Useful?
Cowhorn forceps may be considered when extracting a mandibular molar with a clearly accessible bifurcation.
They are particularly associated with:
Mandibular first molars
These commonly have well-defined mesial and distal roots, making their anatomy compatible with the cowhorn concept.
Mandibular second molars
They may also be suitable when the second molar has sufficiently separated roots and an accessible bifurcation.
Cases requiring strong furcation engagement
When conventional crown engagement is less effective, the ability to position pointed beaks toward the furcation may provide an alternative mechanical approach.
Instrument selection, however, should always be based on clinical and radiographic assessment.
When May Cowhorn Forceps Be Less Suitable?
Cowhorn forceps are not automatically the best choice for every mandibular molar.
They may be less suitable where there is:
The clinician should assess the tooth and surrounding structures before choosing an extraction instrument.
Are Cowhorn Forceps Used for Wisdom Teeth?
Cowhorn forceps are mainly associated with mandibular first and second molars, rather than being the standard choice for lower third molars.
Third molars can have highly variable root anatomy and limited posterior access.
Dedicated instruments such as No. 222 mandibular third molar forceps or other appropriate surgical instruments may therefore be selected depending on the clinical situation.
The decision should be based on the individual tooth rather than simply its position in the dental arch.
Cowhorn Forceps vs Dental Elevators
Cowhorn forceps and dental elevators can both contribute to tooth removal, but they are fundamentally different instruments.
A dental elevator is generally inserted into an appropriate space around the tooth or root and used to luxate or elevate it.
A cowhorn forceps surrounds the tooth from opposing sides and uses its pointed beaks to engage toward the molar furcation.
A simple way to remember the difference is:
Elevator = loosen and elevate
Cowhorn forceps = engage, grip and deliver
In practice, the instruments may be used as part of the same extraction procedure depending on clinical requirements.
Advantages of Cowhorn Forceps
When used for an appropriate mandibular molar, the cowhorn design can offer several practical advantages.
Strong Furcation Engagement
The pointed beaks are specifically shaped to engage toward the root bifurcation.
Mechanical Advantage
Progressive engagement of the beaks can contribute to elevation of the tooth as controlled pressure is applied.
Right and Left Use
Standard cowhorn patterns are generally universal for mandibular molars, reducing the need for separate right and left instruments.
Controlled Grip
The opposing pointed beaks can provide firm engagement when correctly positioned.
Useful Molar-Specific Design
Unlike general-purpose extraction forceps, the cowhorn pattern is designed specifically around common mandibular molar anatomy.
Important Features of High-Quality Cowhorn Forceps
The performance of an extraction forceps depends not only on its basic pattern but also on manufacturing accuracy.
When evaluating cowhorn forceps, important features include:
High-Quality Surgical Stainless Steel
The material should provide appropriate strength, corrosion resistance and durability for repeated professional use and reprocessing.
Precise Beak Alignment
When the handles close, the two working ends should align correctly.
Poor alignment can cause uneven engagement and reduce control.
Proper Beak Geometry
The tips should have the correct curvature, thickness and point geometry for the intended pattern.
The beaks should not simply be made excessively sharp; their overall anatomical form and symmetry are important.
Smooth Joint Movement
The joint should open and close smoothly without excessive looseness or stiffness.
Strong Construction
The instrument must withstand the mechanical forces associated with dental extraction without unwanted deformation.
Comfortable Handle Design
The handle should provide secure control even when significant pressure must be applied.
Appropriate Surface Finish
A professionally finished surface supports cleaning, inspection and corrosion resistance.
How to Identify Cowhorn Forceps
Cowhorn forceps are usually easy to recognize.
Look for these characteristics:
Two pointed beaks – both working ends terminate in narrow, pointed projections.
Horn-like appearance – when opened, the working ends resemble two opposing horns.
Strong inward curvature – both beaks curve toward the central working area.
Mandibular orientation – the working end is positioned appropriately for access to lower molars.
Universal opposing beaks – the two sides generally have similar geometry, allowing use on right or left lower molars.
If you see two prominent pointed beaks designed to meet around the furcation of a lower molar, you are most likely looking at a cowhorn pattern.
How Are Cowhorn Forceps Different From Upper Molar Forceps?
Upper molars typically have three roots, while mandibular molars more commonly have two principal roots.
Because of this anatomical difference, upper molar forceps often use asymmetrical beak designs and may be supplied in separate right and left patterns.
Cowhorn forceps are designed around the mesial-distal two-root anatomy of mandibular molars.
This is why standard cowhorn forceps such as No. 23 and No. 16 are generally universal for the right and left sides of the mandible.
Cleaning, Sterilization and Maintenance
Reusable cowhorn forceps should be cleaned, inspected and sterilized according to the instrument manufacturer’s validated reprocessing instructions and the healthcare facility’s applicable procedures.
Particular attention should be given to:
After cleaning, the instrument should be inspected for:
A damaged extraction forceps should not be returned to clinical use until appropriately assessed.
Frequently Asked Questions About Cowhorn Forceps
What are cowhorn forceps?
Cowhorn forceps are specialized dental extraction forceps with two pointed, inward-curving beaks designed primarily to engage the bifurcation of mandibular molars.
What are cowhorn forceps used for?
They are mainly used for extracting lower first and second molars, particularly where the bifurcation between the mesial and distal roots can be appropriately engaged.
Why are they called cowhorn forceps?
Their open beaks resemble the shape of two cow horns, giving the instrument its common name.
What number is a cowhorn forceps?
The most commonly recognized cowhorn patterns are No. 23 and No. 16.
What is No. 23 cowhorn forceps used for?
No. 23 is primarily used for extracting mandibular first and second molars.
What is No. 16 cowhorn forceps used for?
No. 16 is also designed primarily for mandibular first and second molars. It uses a similar pointed cowhorn beak design but typically differs from No. 23 in its handle configuration.
What is the difference between No. 16 and No. 23 cowhorn forceps?
Both have pointed beaks designed for lower molar bifurcation engagement. The commonly recognized difference is that No. 23 generally has straight handles, whereas No. 16 has a curved or hook-style handle configuration.
Can cowhorn forceps be used on both sides?
Yes. Standard mandibular cowhorn patterns are generally universal and can be used for both right and left mandibular molars.
Are cowhorn forceps used for upper molars?
The classic No. 16 and No. 23 cowhorn patterns described here are mandibular molar forceps. Upper molars have different root anatomy and are generally managed with appropriately designed maxillary molar forceps.
Conclusion
Cowhorn forceps are specialized dental extraction instruments designed primarily for mandibular first and second molars. Their characteristic pointed, inward-curving beaks distinguish them from conventional extraction forceps and allow engagement toward the bifurcation between the mesial and distal roots.
The two commonly recognized patterns, No. 23 Cowhorn Forceps and No. 16 Cowhorn Forceps, share a similar working principle but differ mainly in their handle configuration. No. 23 generally features straight handles, while No. 16 typically has a curved or hook-style handle.
Understanding cowhorn forceps types, uses and design helps dental professionals distinguish these instruments from standard lower molar forceps and select an appropriate instrument according to tooth anatomy, root morphology and the individual clinical situation.
